SERIES
       1020
PENDANT AND DOTTIE HANGER
MOUNTING INSTRUCTIONS

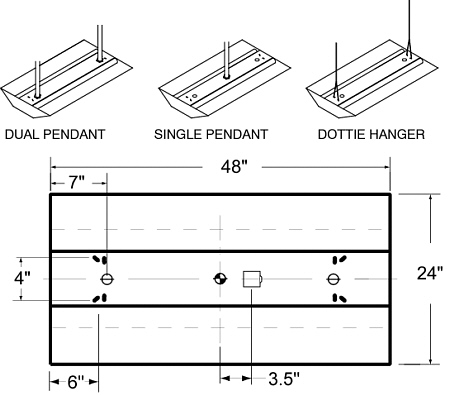

DUAL PENDANT MOUNTING - Remove two end 11/16" K.O.'s install pendants and secure using fasteners provided with pendant.

SINGLE PENDANT MOUNTING - Remove center 7/8" K.O.'s install pendants and secure using fasteners provided with pendant.

DOTTIE HANGER MOUNTING - Spread DOTTIE HANGER to approximately 5.5" insert hanger into diagonal slot with "hook" facing towards center. Repeat for other side.  Connect DOTTIE HANGER to chain or other suspension system from top most bend.
